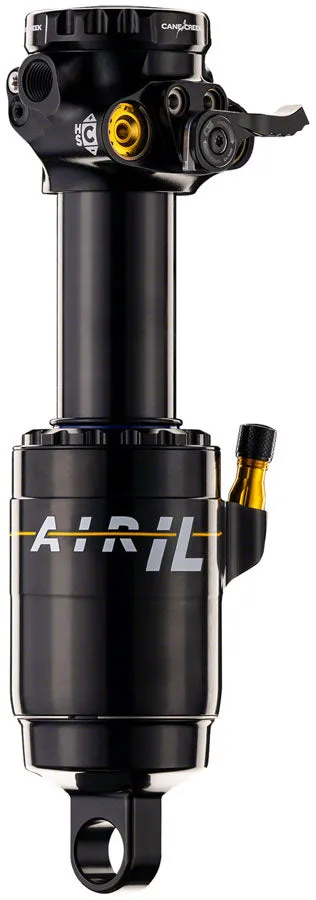

The Air IL Next Gen shock packs class-leading performance in a smaller and stronger package, featuring a thicker inner damper tube for increased strength and a 17mm reduction in overall width on the valve body to increase fitment possibilities on tight frames. The Class-leading externally adjustable DB Twin Tube technology provides the widest range of 4-way damping adjustability on the market - designed to bring a new level of control to XC and Trail Bikes.

• 6mm reduction in the outer diameter of the Air spring to further increase the likelihood of fitment while increasing the max psi pressure up to 350psi (Up from 300psi)
• 4-Way independent adjustment - high and low speed compression, high and low speed rebound
• Twin-tube damping for unparalleled small bump compliance
• Climb switch lessens low-speed compression and rebound damping at the same time for improved climbing traction
• Hand assembled and Individually dyno-tested

Specifications:

• External Adjustments: High Speed Compression Damping
• External Adjustments: Low Speed Compression Damping
• External Adjustments: Rebound Damping
• Eye to eye length (mm): 185
• Eyelet Diameter (mm): Trunnion
• Eyelet Diameter (mm): 12.7
• Lockout Switch: Climb Switch
• Metric: Yes
• Positive Spring: Air
• Stroke (mm): 50
• Weight: 385
